1.1-Ton Compact Excavator
TYPHON TERROR XI STORM
A compact approximately 2,425 lb-class excavator built for trenching, landscaping, farm work, property maintenance and tight-access excavation — with Boom Swing, hydraulic thumb capability and a compact tracked undercarriage.
Machine Overview
COMPACT SIZE. SERIOUS WORK CAPABILITY.
TERROR XI STORM combines compact tracked mobility with practical excavation hardware for residential, agricultural, landscaping and small construction applications.
Exterior Walkaround
SEE THE MACHINE FROM EVERY ANGLE.

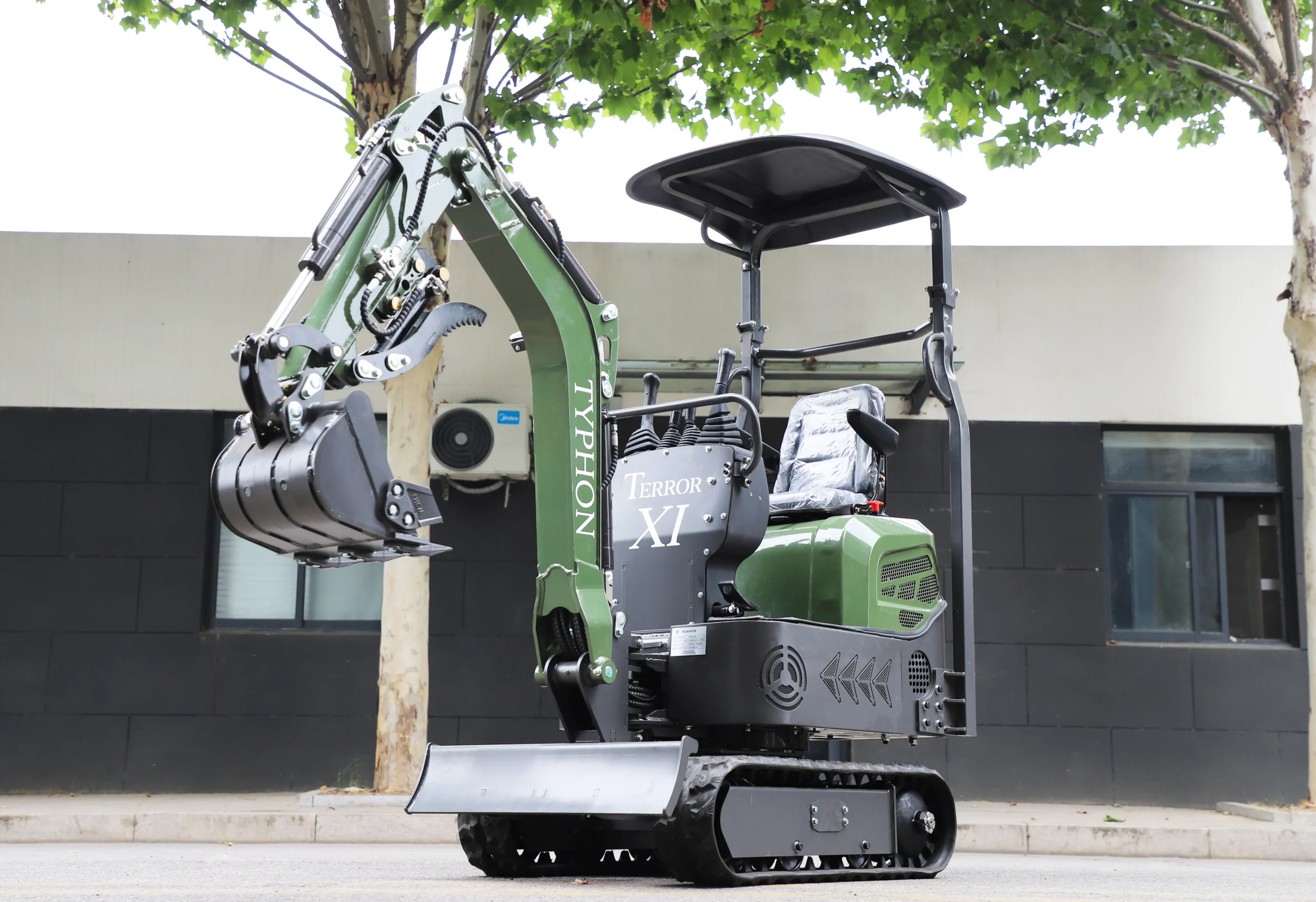

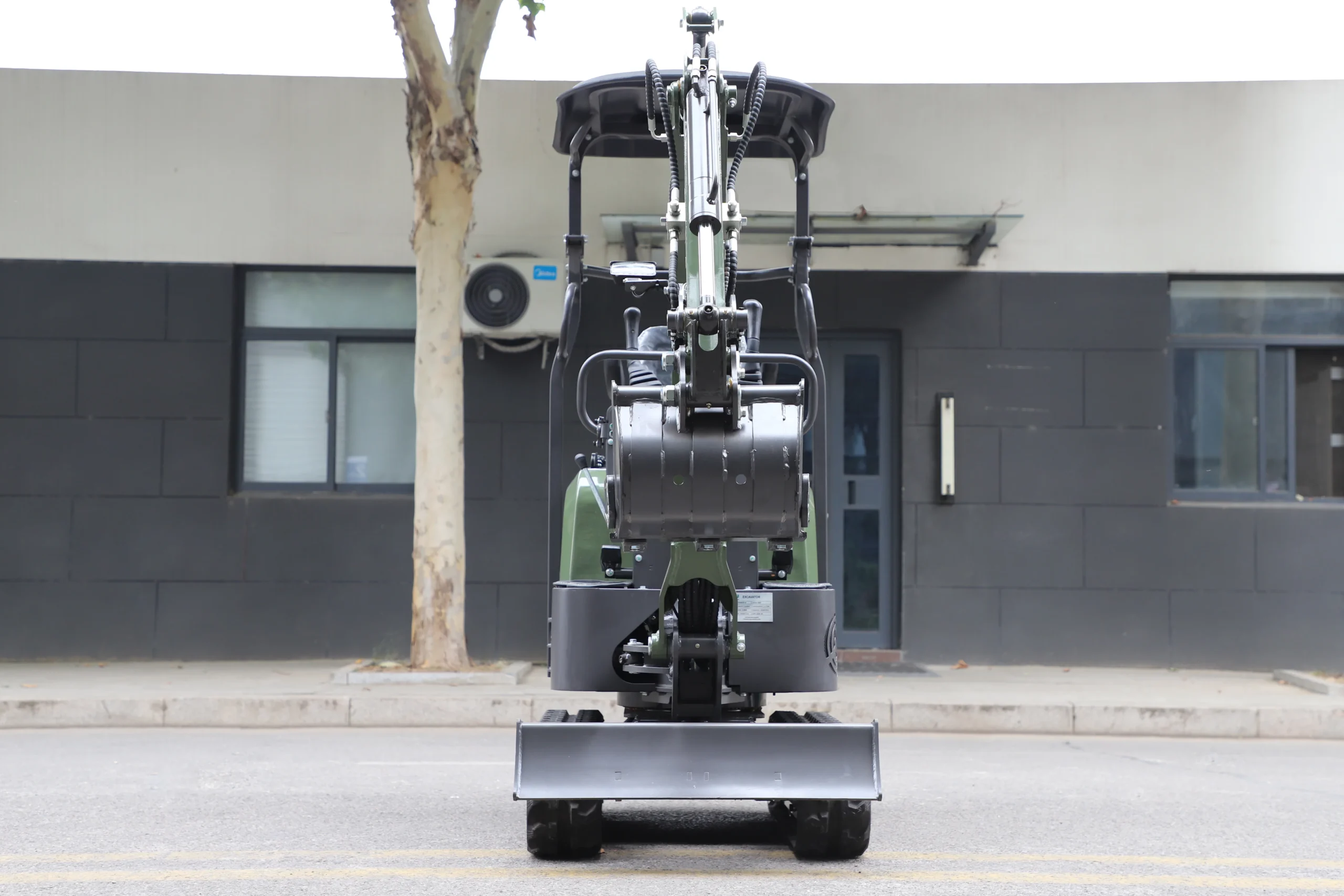

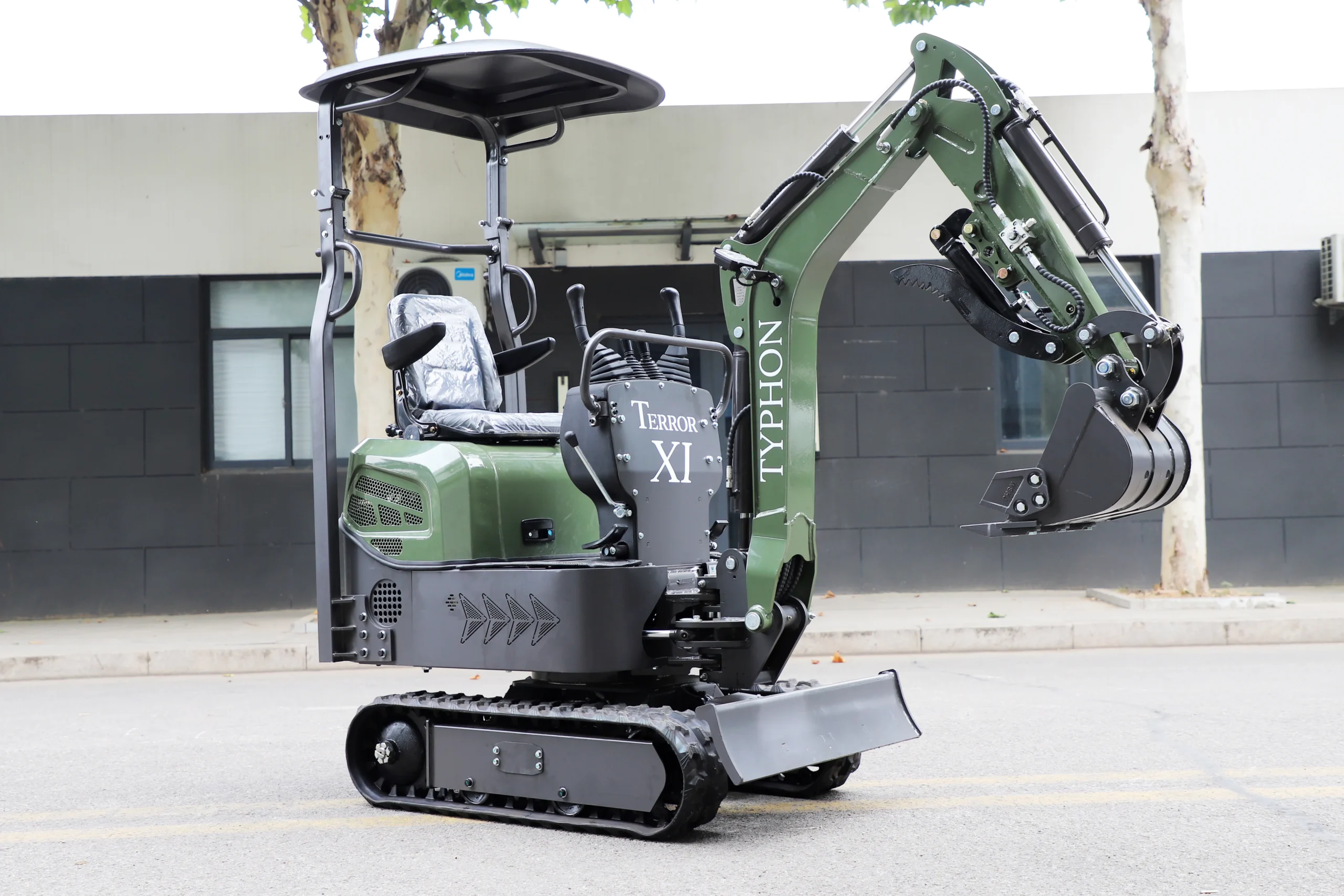

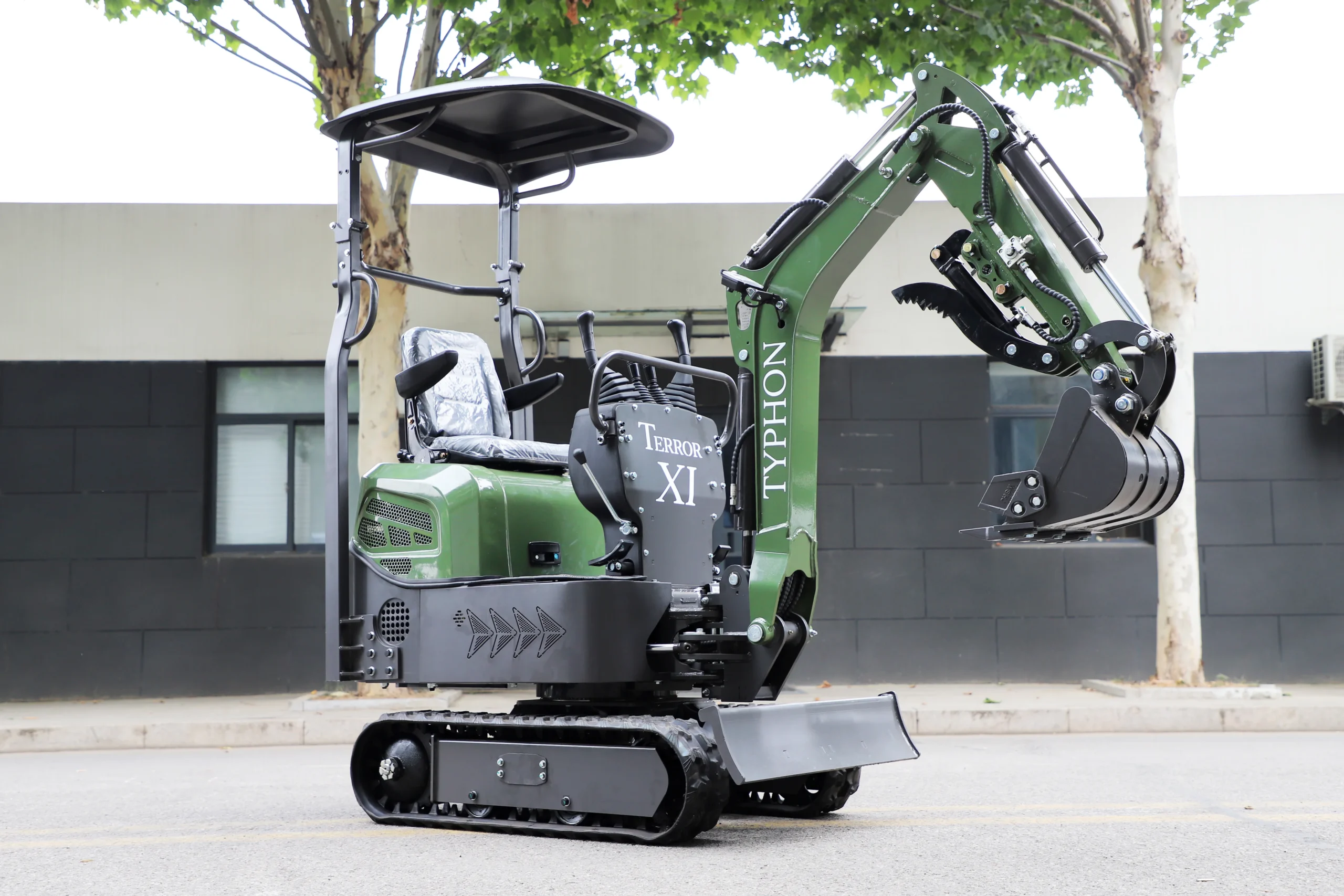

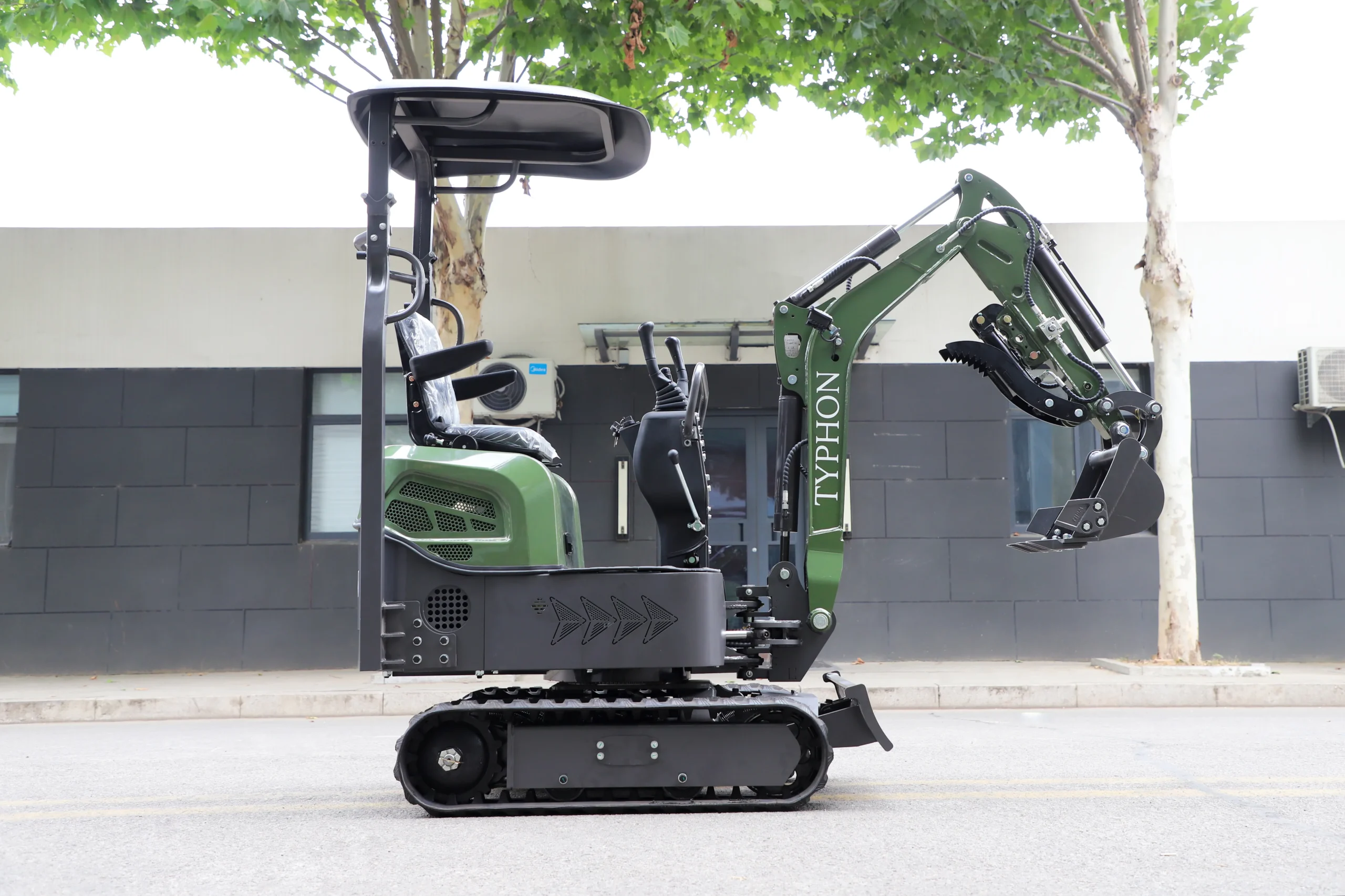

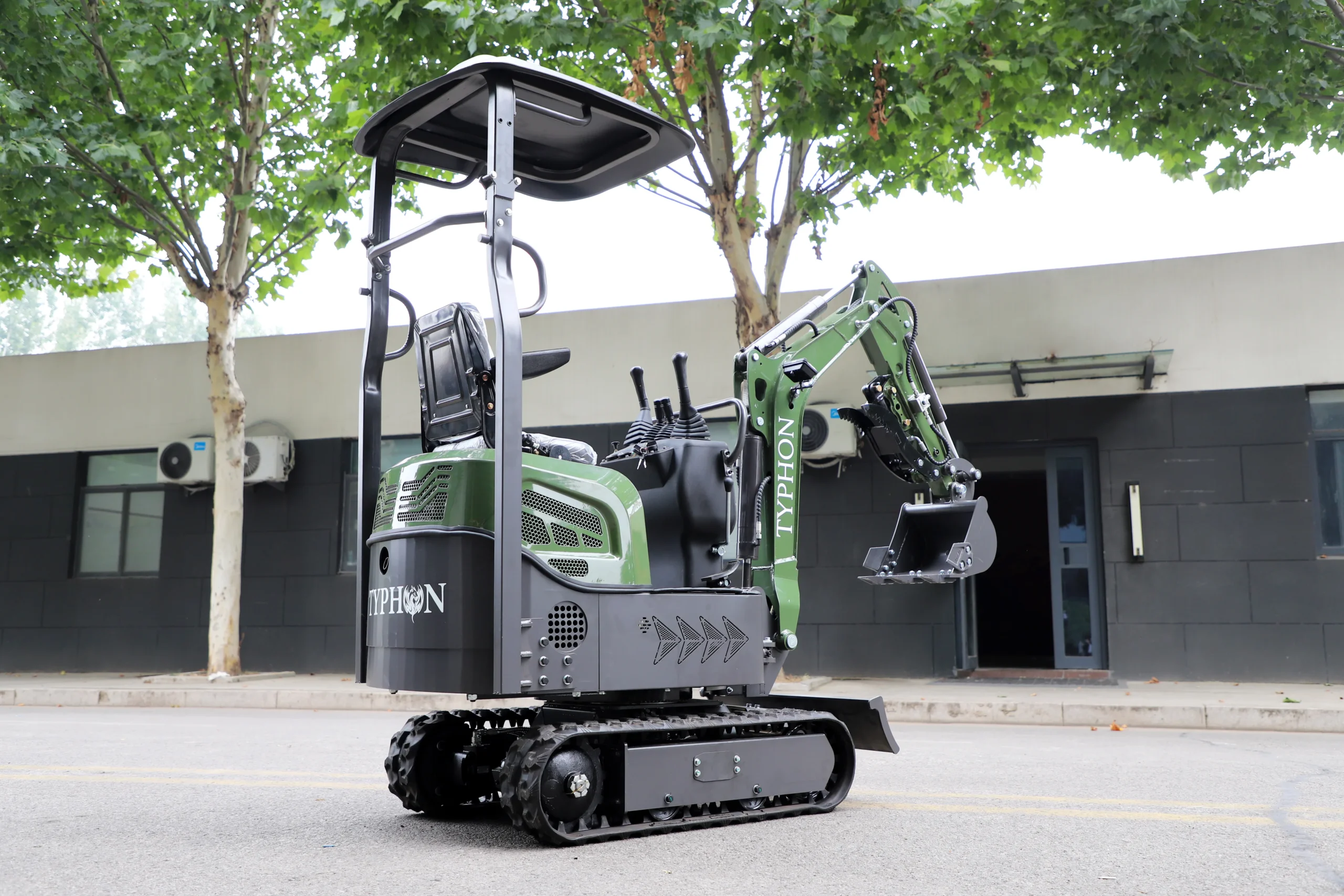

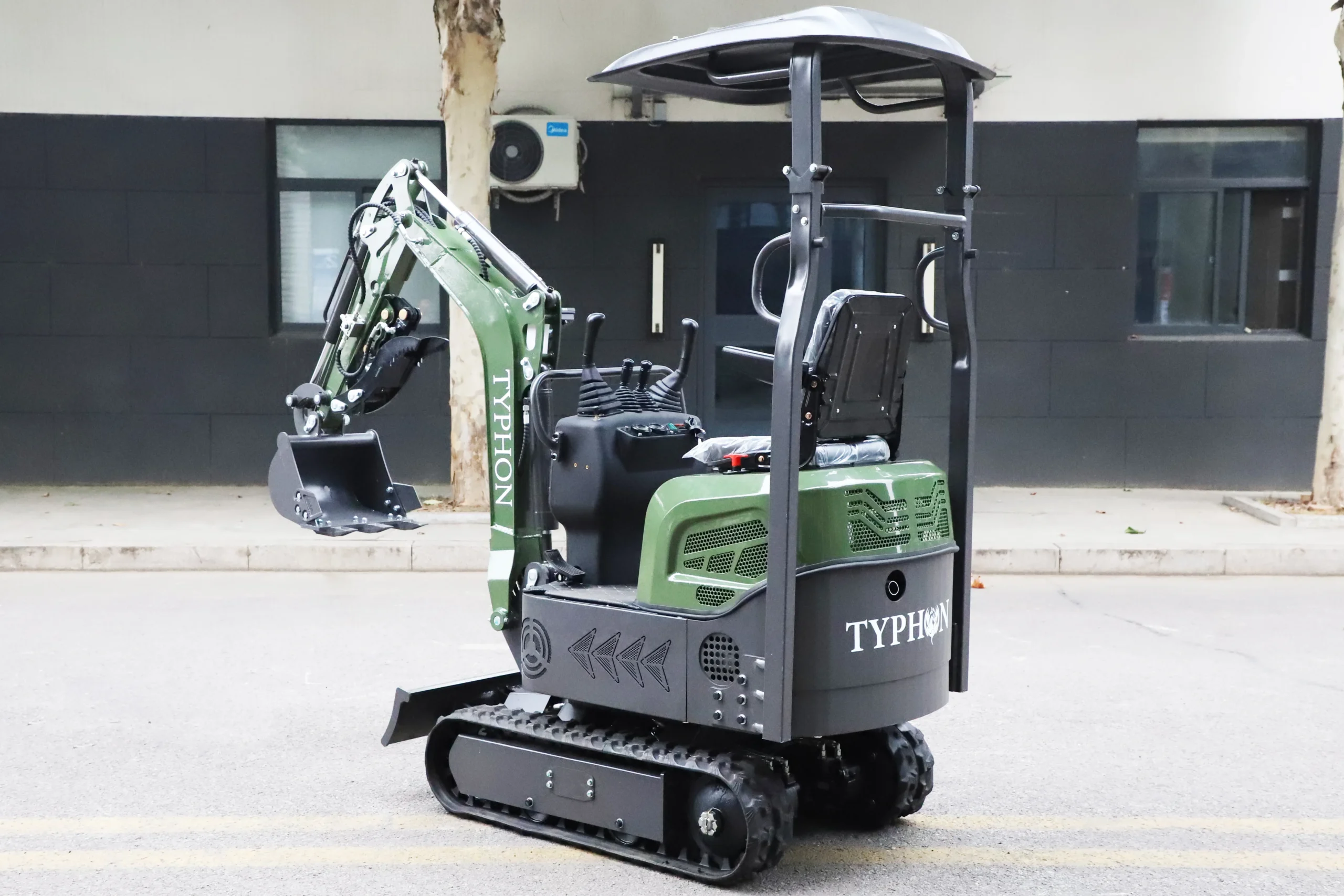

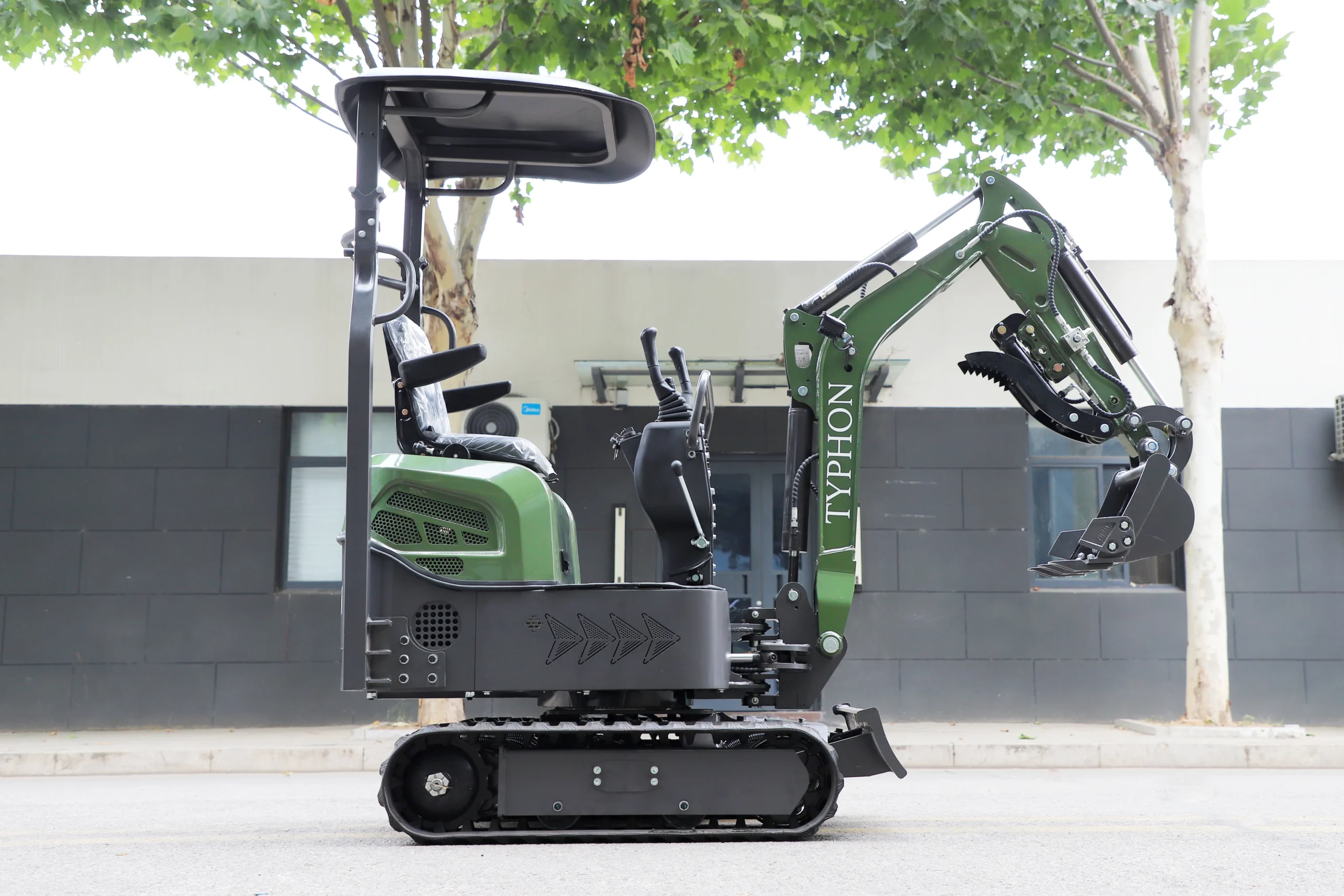

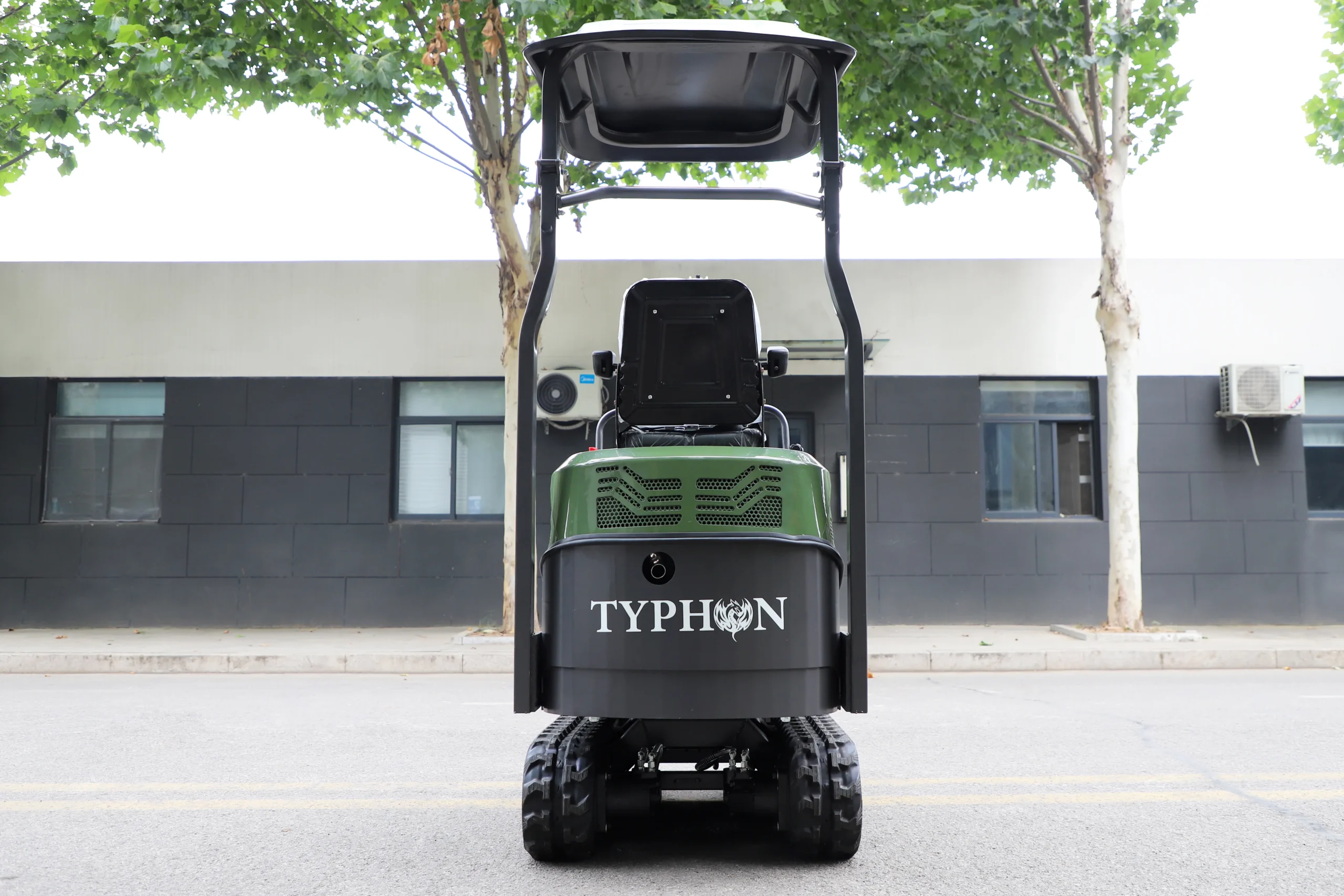

Explore the TERROR XI from the rear, side, front and three-quarter angles to inspect the complete machine layout.
Machine Anatomy
BUILT AROUND REAL WORK.
The TERROR XI combines a compact tracked lower frame with a boom-swing digging structure, hydraulic thumb, standard bucket, open canopy and front grading blade.
1
2
3
4
5
6
Open operator station with overhead canopy and structural uprights.
Offset boom mounting system that increases positioning flexibility in confined areas.
Provides additional grabbing control around the bucket.
Standard digging bucket with approximately 0.88 cu ft capacity.
Compact tracked undercarriage for jobsite mobility.
Supports backfilling, grading and machine positioning.
Standout Feature
DIG WHERE STRAIGHT BOOMS CAN'T.

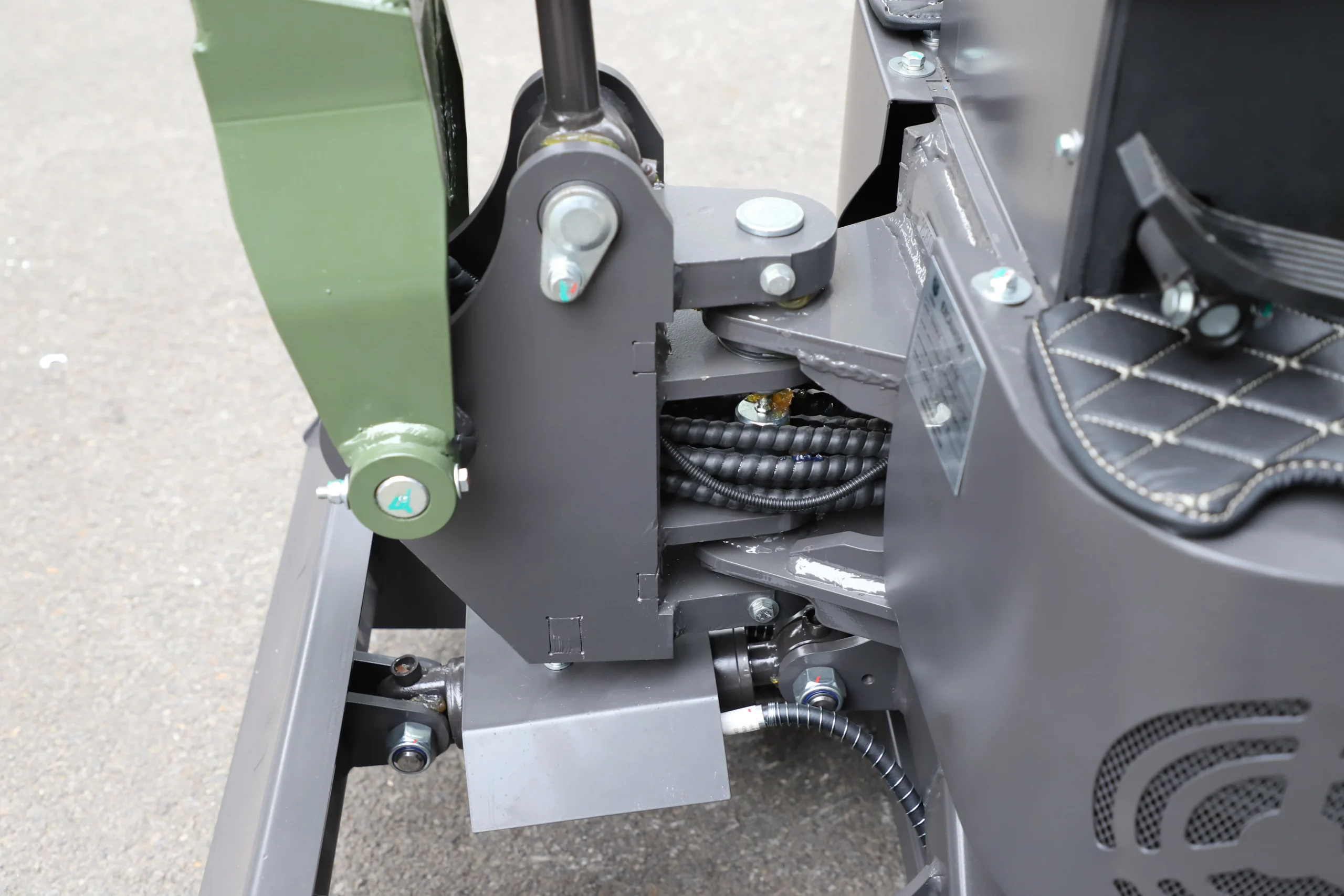

Boom Swing allows the digging structure to work offset from the machine centerline, helping the operator work closer to walls, fences, edges and fixed obstacles.
MORE POSITIONING FREEDOM.
Tight jobsites do not always leave enough room to continuously reposition the entire excavator. Boom Swing provides another way to place the digging end of the machine where it needs to work.
Digging End
BUCKET. THUMB. CONTROL AT THE WORK END.
The working end combines a compact digging bucket, hydraulic thumb hardware and robust pivot points for digging, grabbing and material-control work.

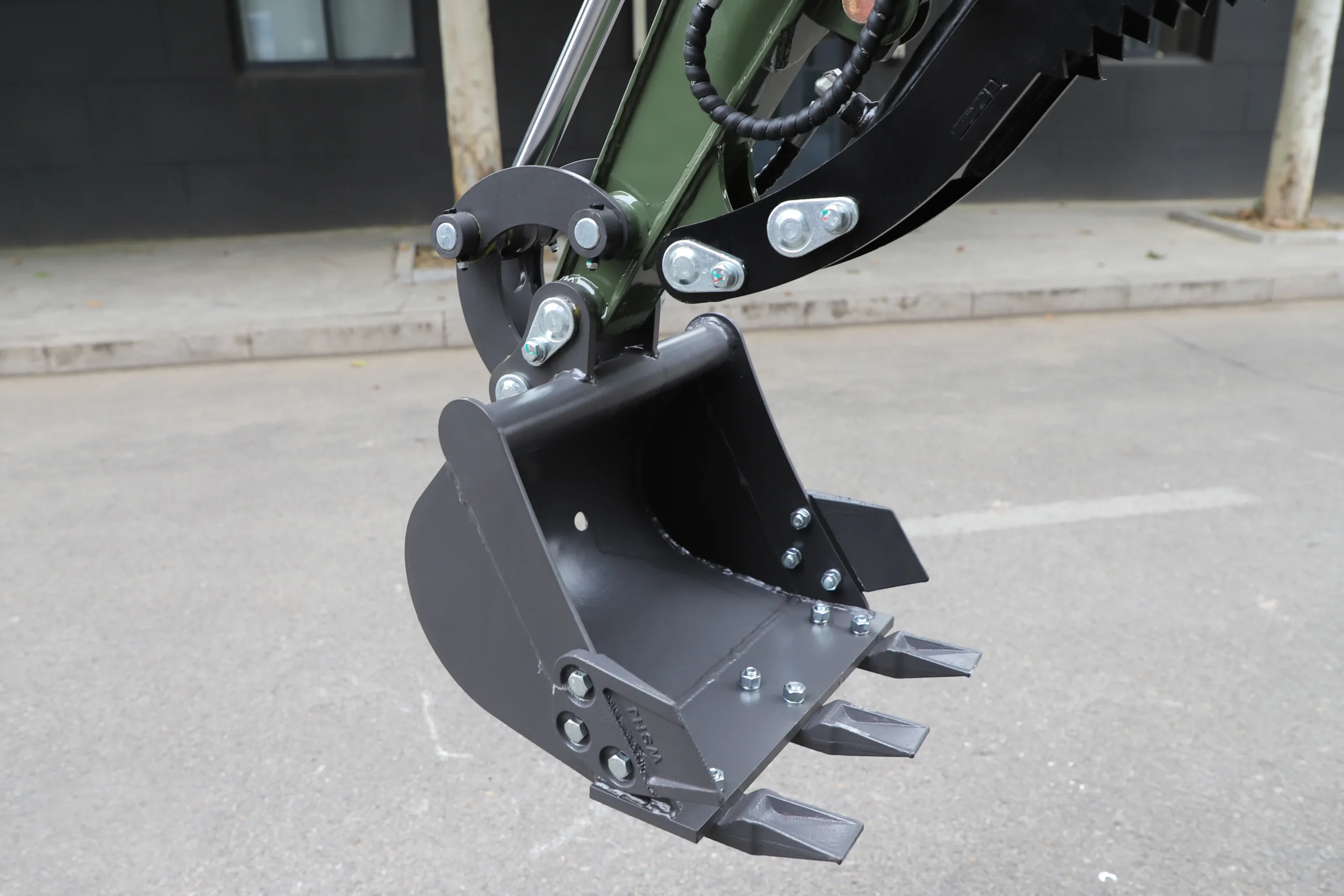

Detailed view of the bucket, thumb structure and linkage.

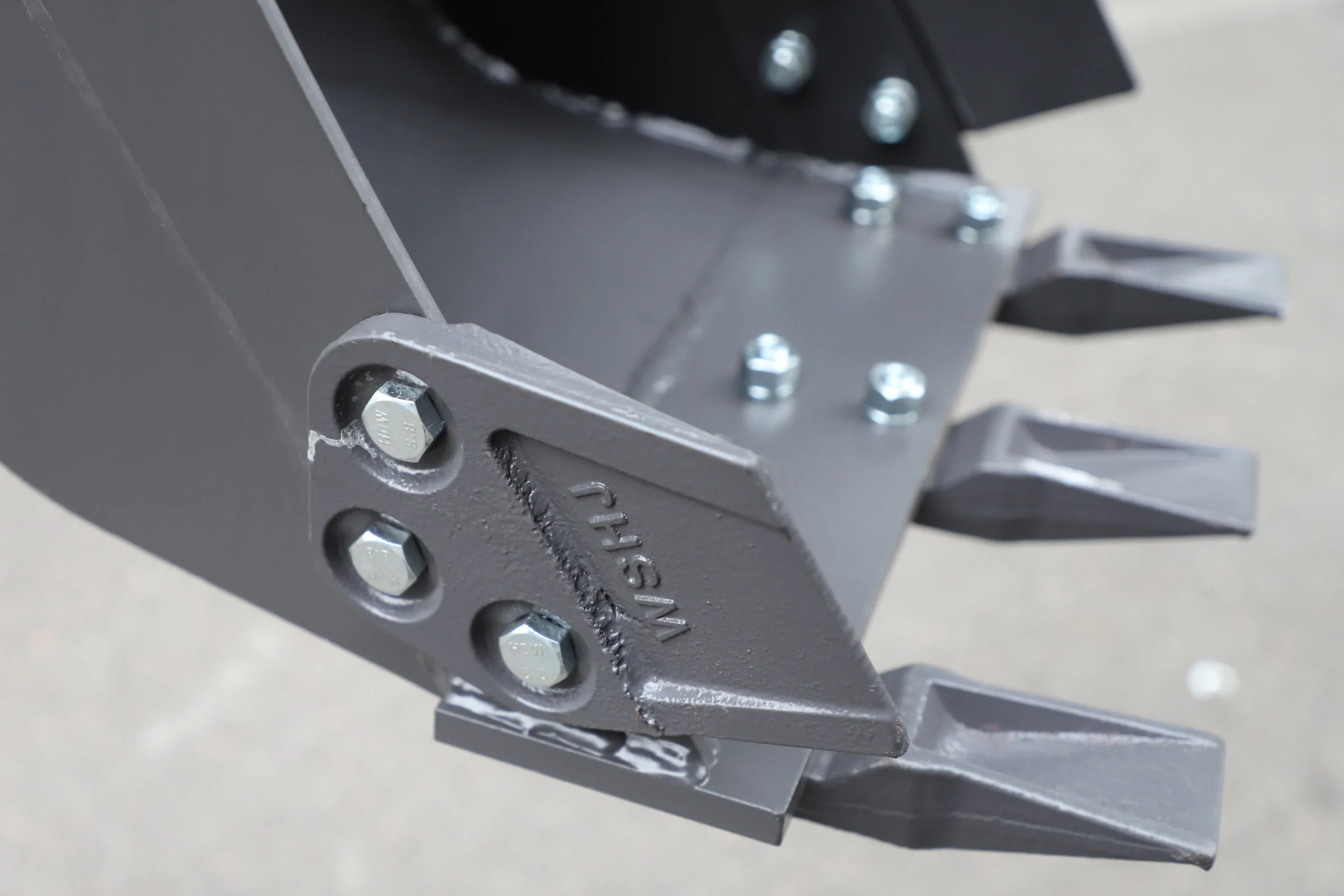

Close view of the bucket side structure and digging tooth.

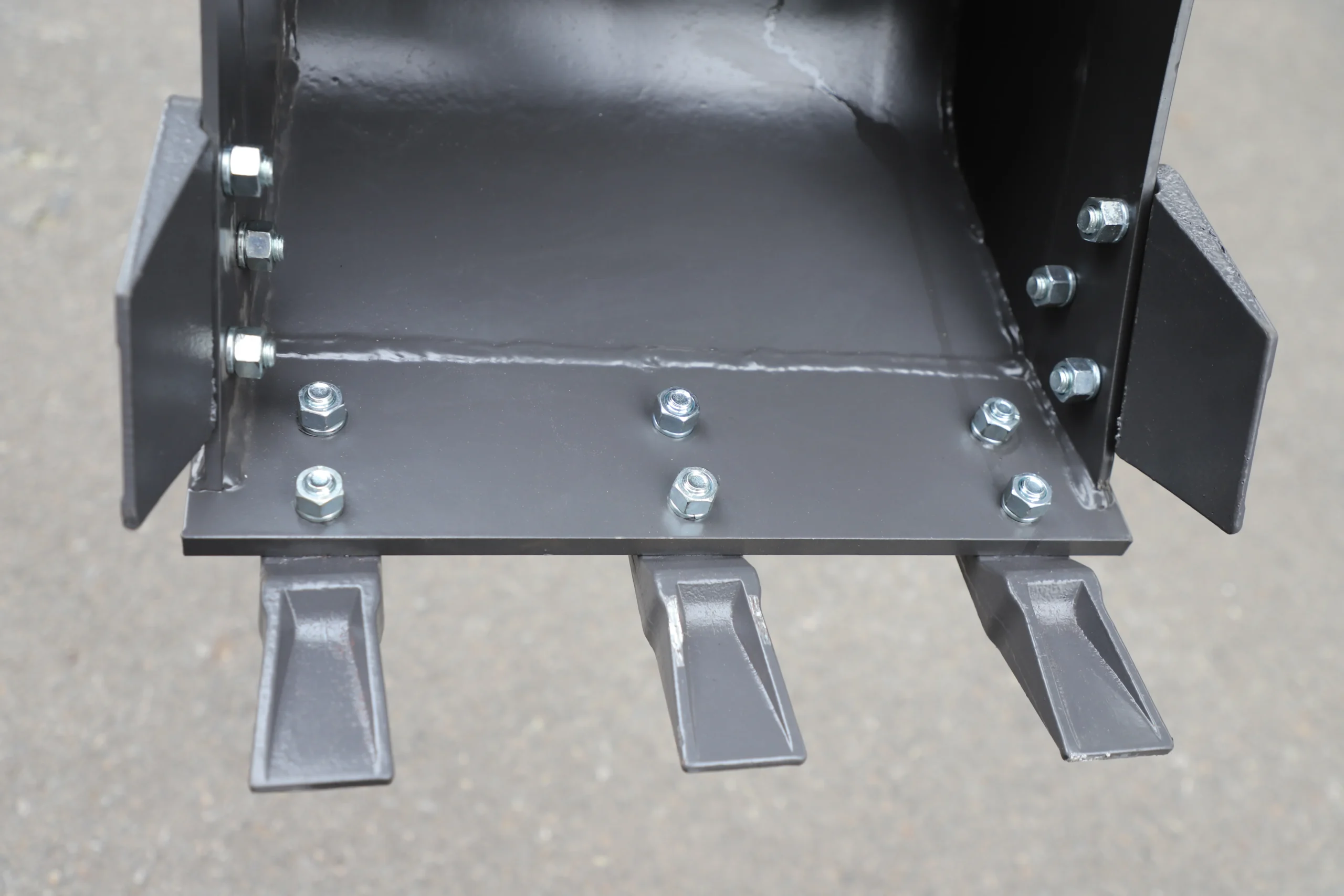

Interior bucket view showing the floor and digging teeth.

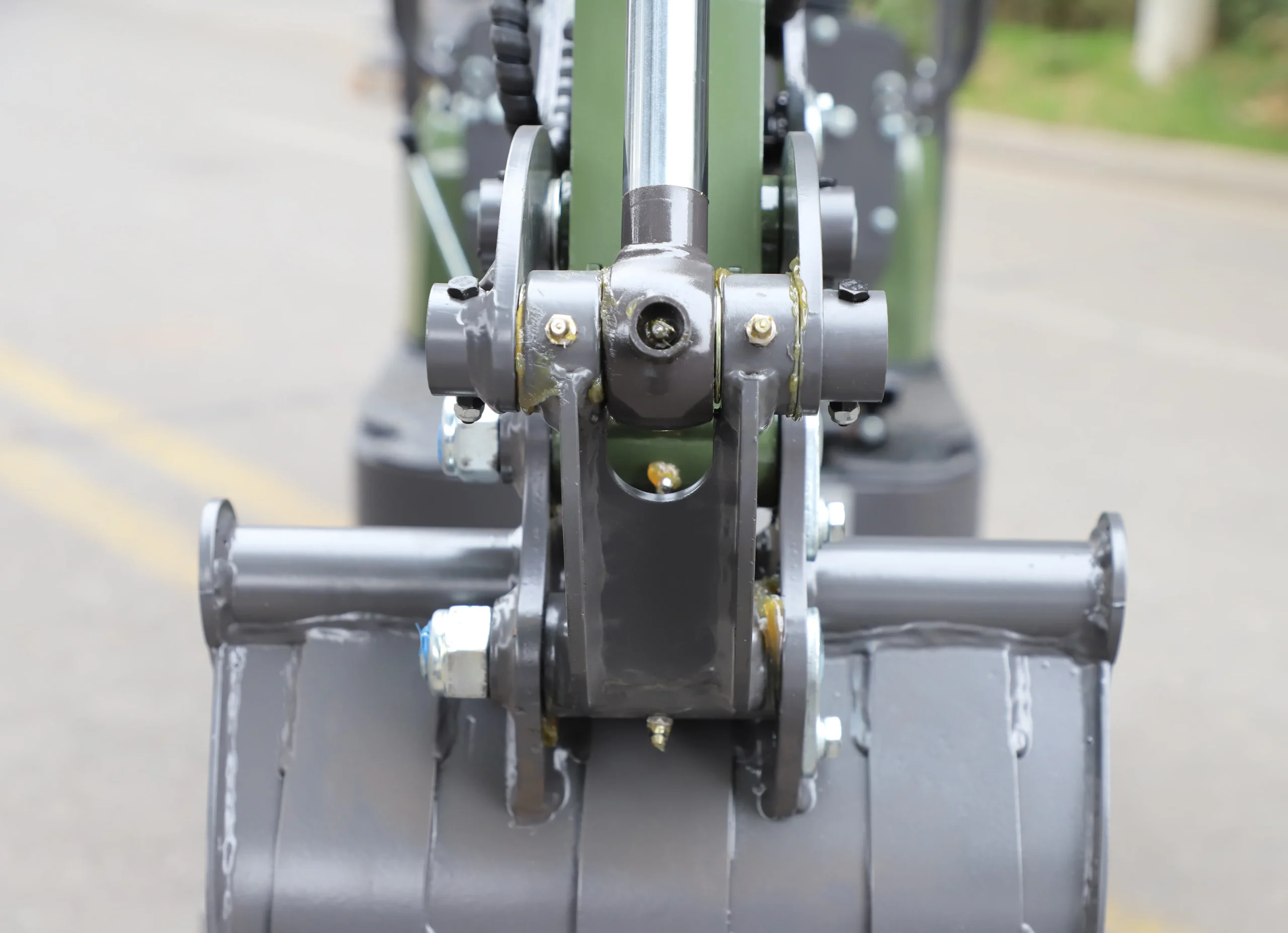

Detailed view of linkage, pins and pivot hardware.
Ground System
COMPACT TRACKED UNDERCARRIAGE.
Rubber tracks, travel-drive hardware and the compact lower frame provide the base for the TERROR XI's jobsite mobility.

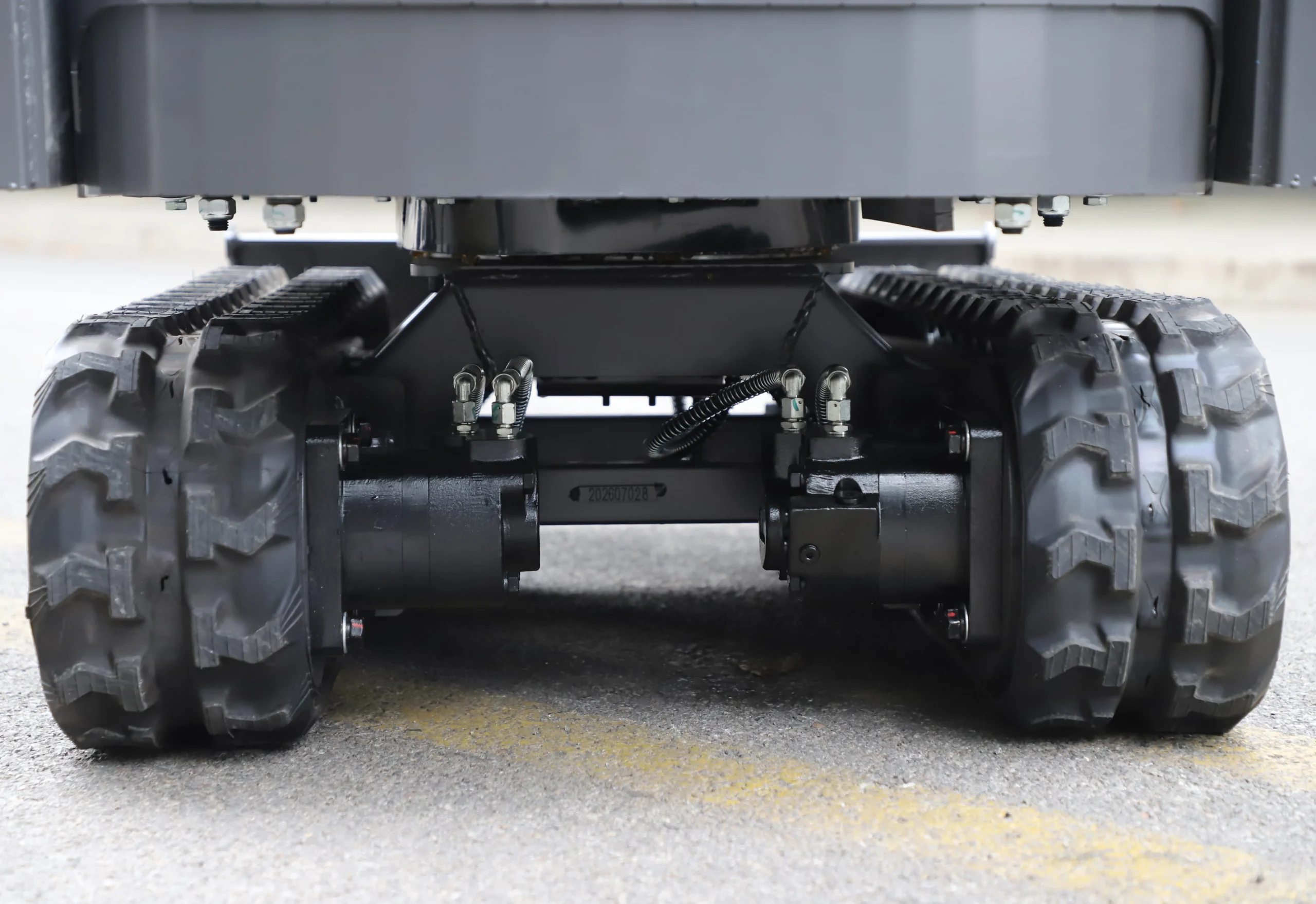

View between the rubber tracks showing the lower machine and hydraulic travel hardware.

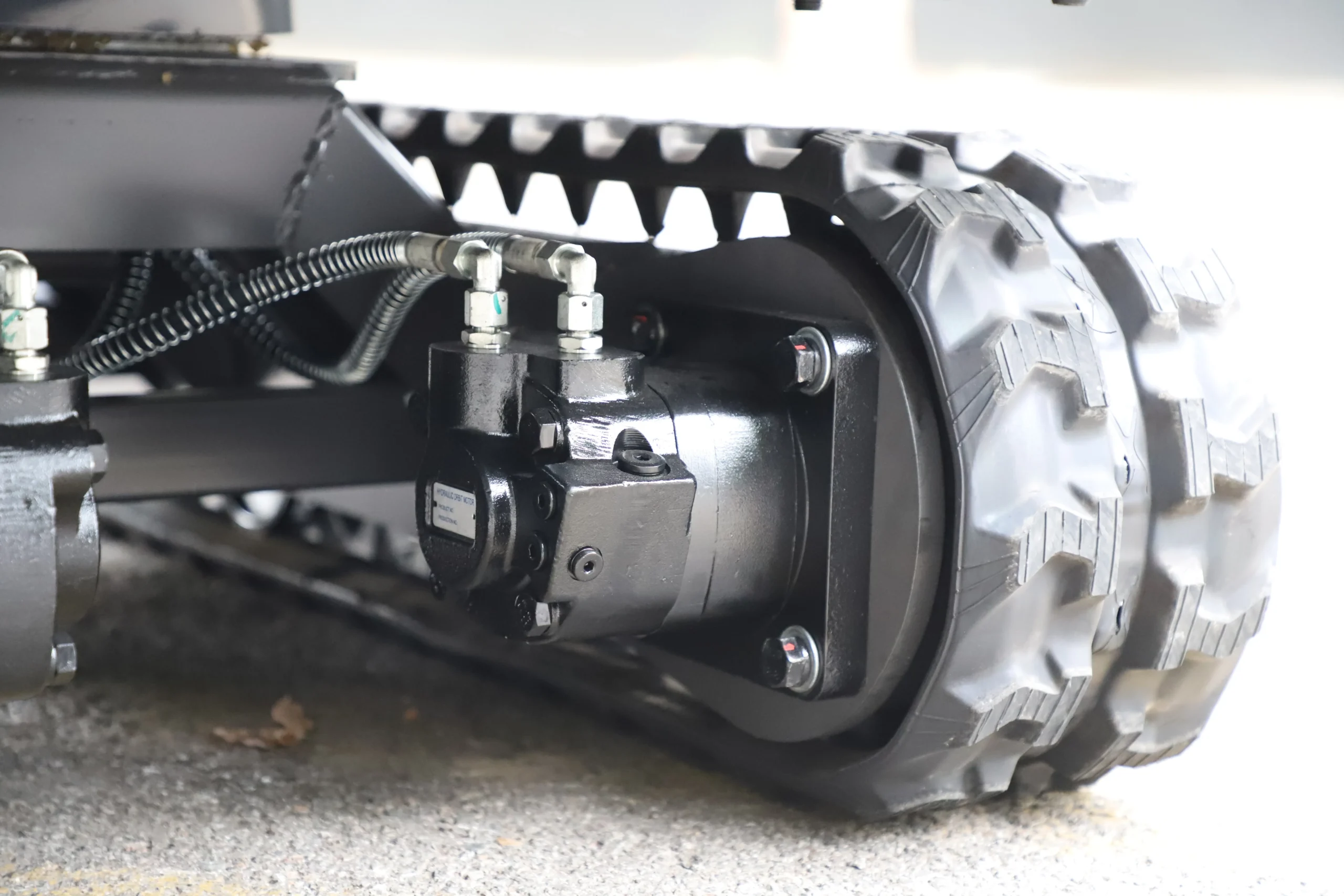

Close-up of the hydraulic travel-drive assembly.

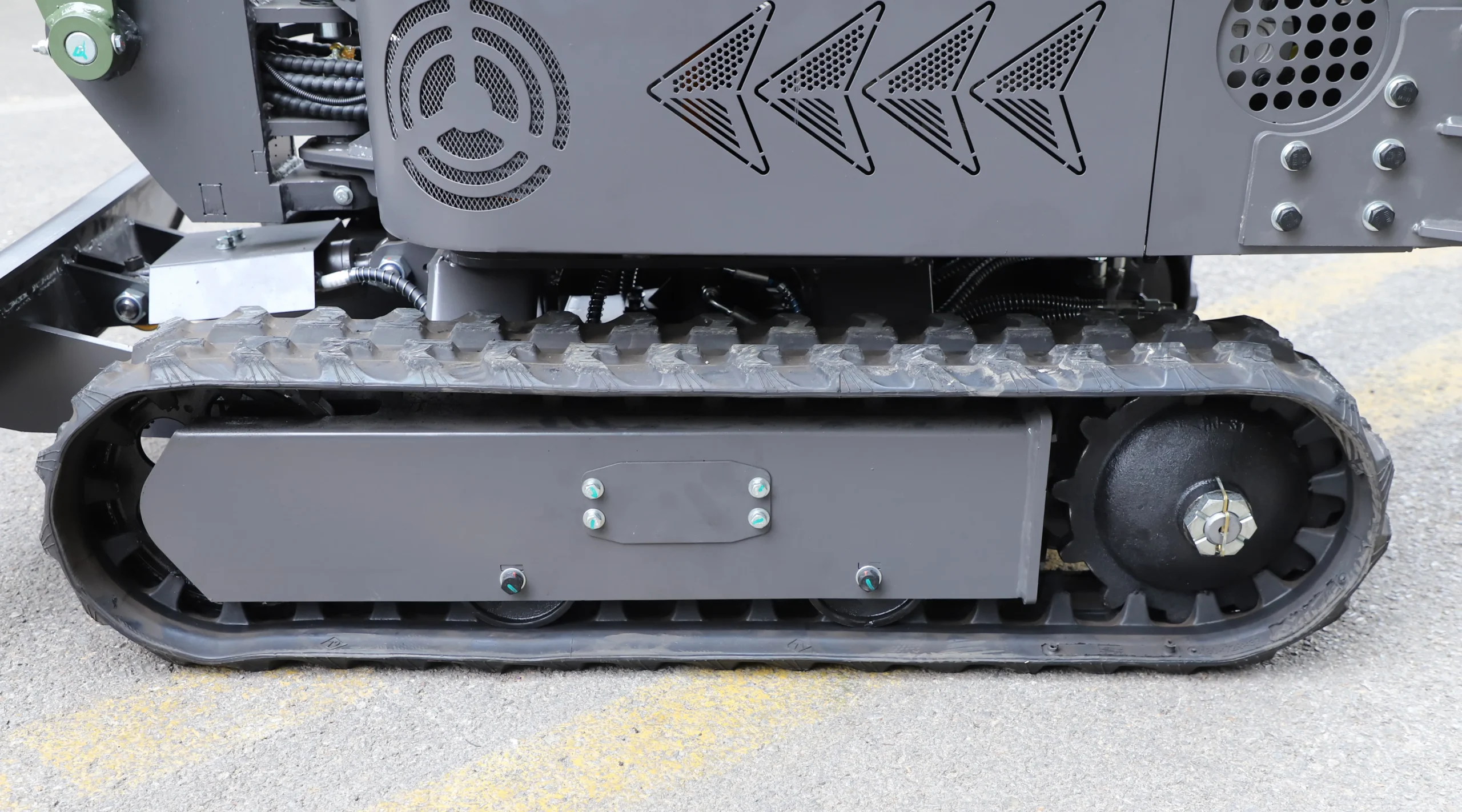

Side view of the track, rollers and compact lower frame.
Power + Service
COMPACT POWER. ACCESSIBLE HARDWARE.
The TERROR XI uses a Briggs & Stratton gasoline engine package inside a compact rear body with ventilation and accessible service areas.

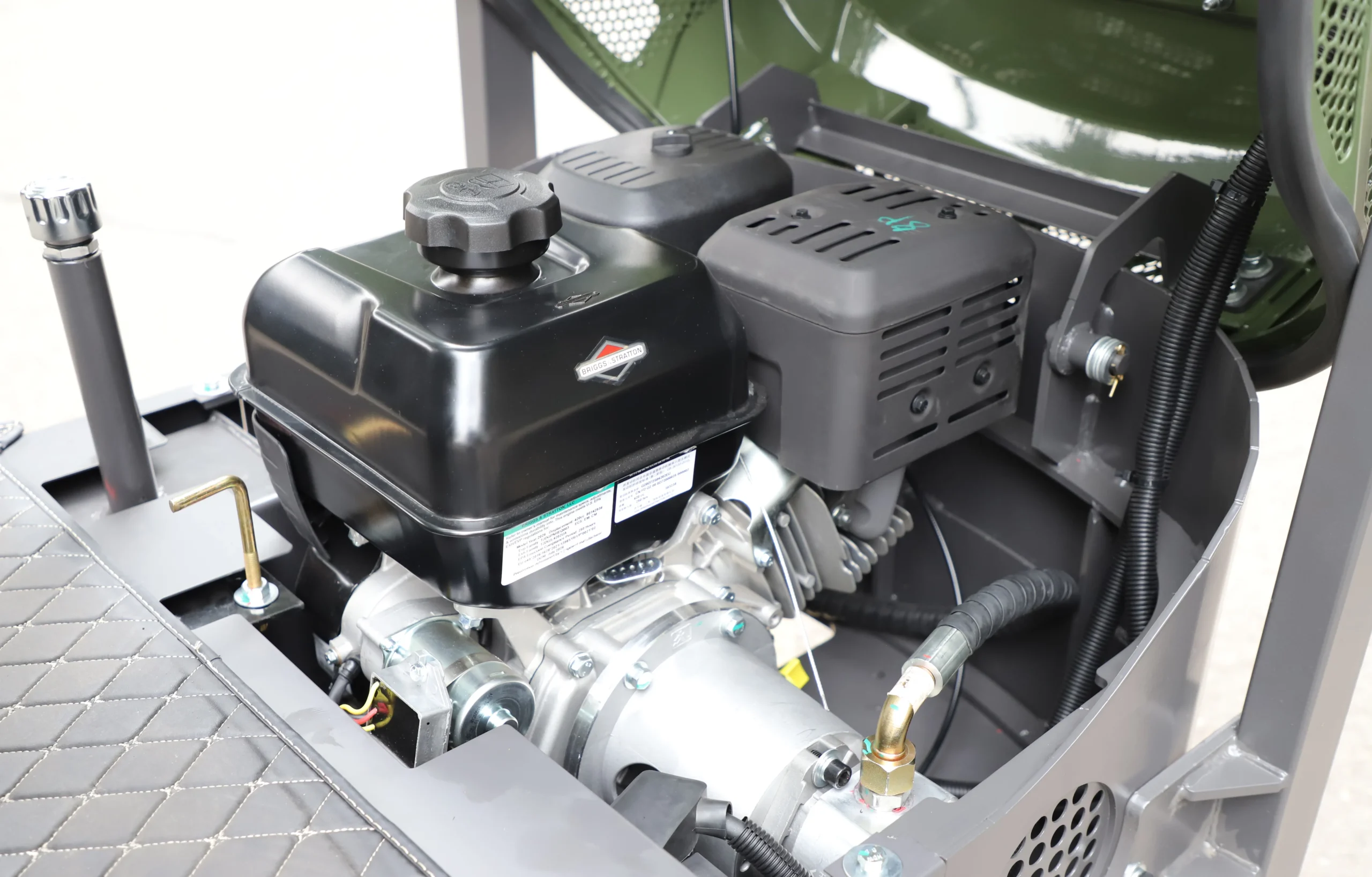

Open engine-bay view showing the power unit, fuel tank and surrounding service hardware.

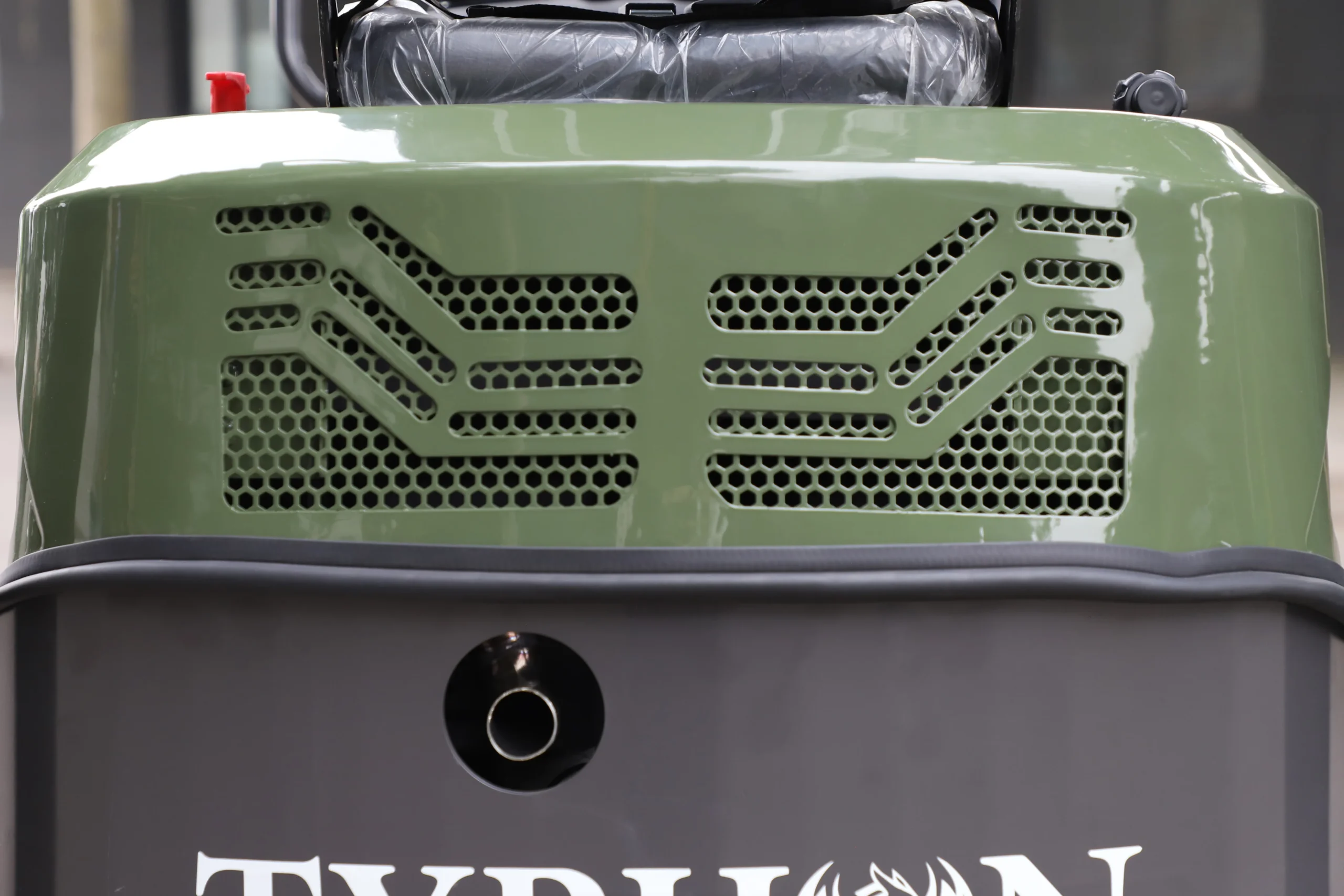

Perforated rear panel provides visible ventilation openings around the engine compartment.

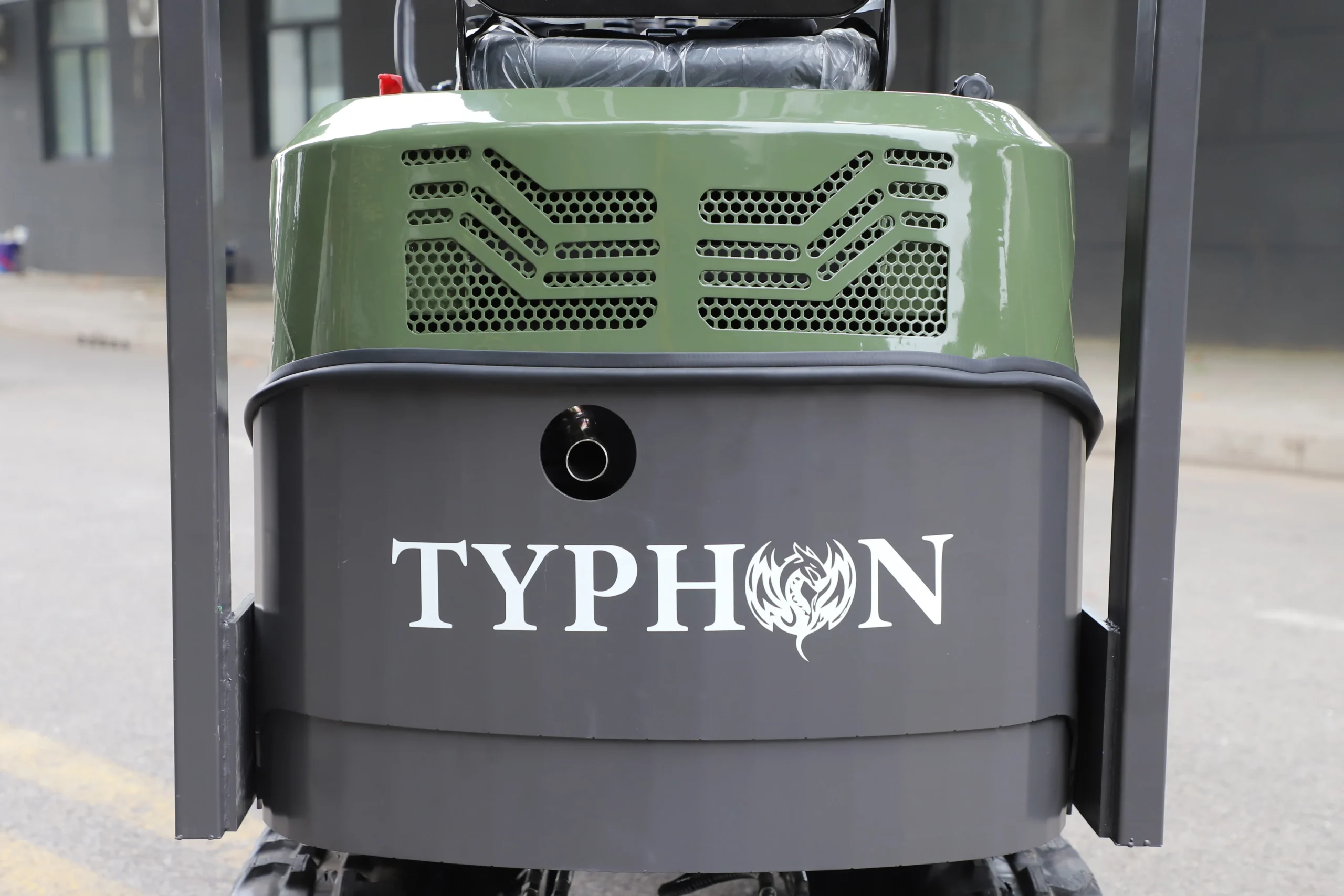

Exterior housing protects the power and hydraulic components inside the compact rear body.

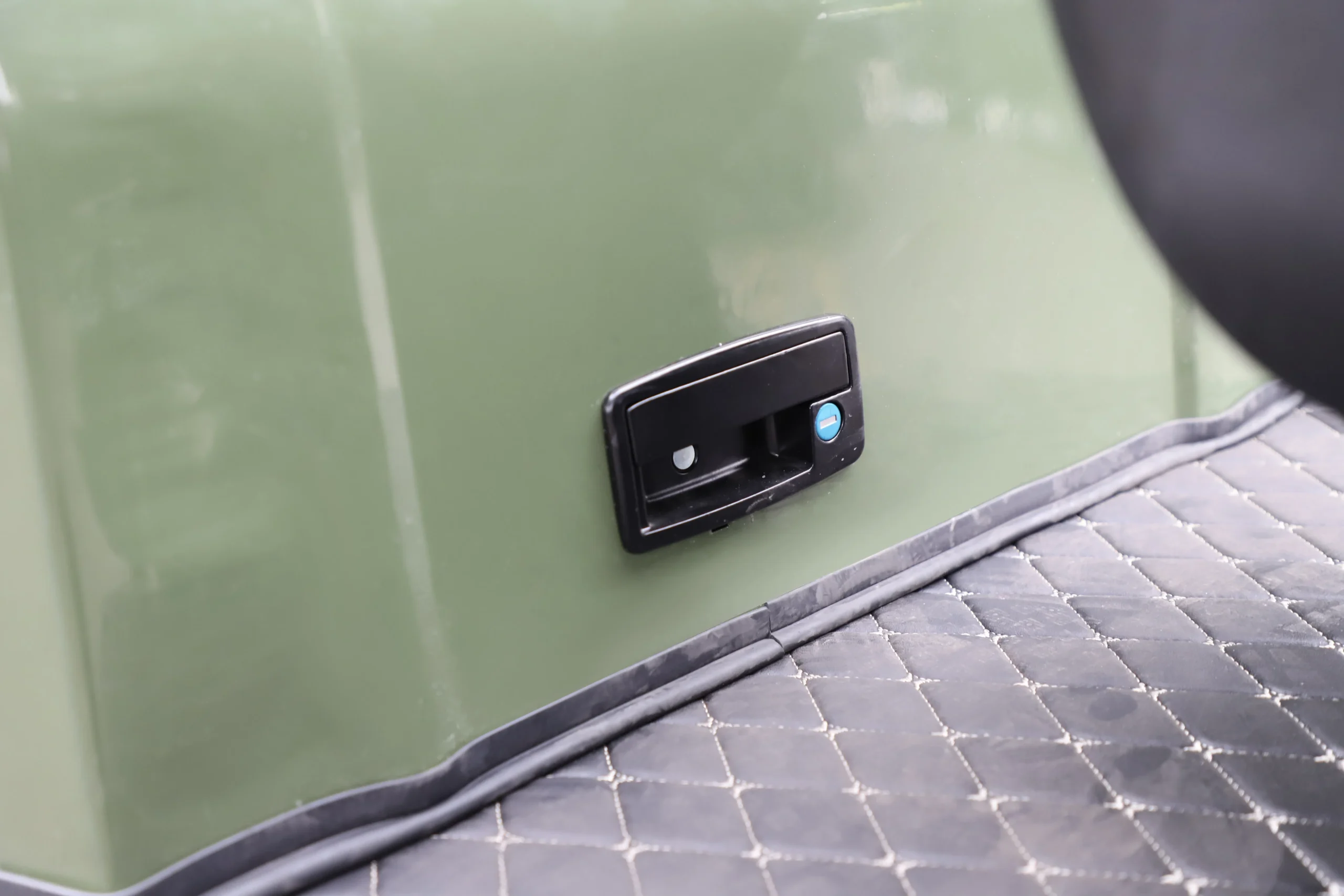

Exterior access hardware located beside the operator area.
Operator Station
CONTROLS WHERE THE OPERATOR NEEDS THEM.
The open station combines work levers, machine monitoring, keyed ignition, operator restraint and work lighting in a compact control environment.

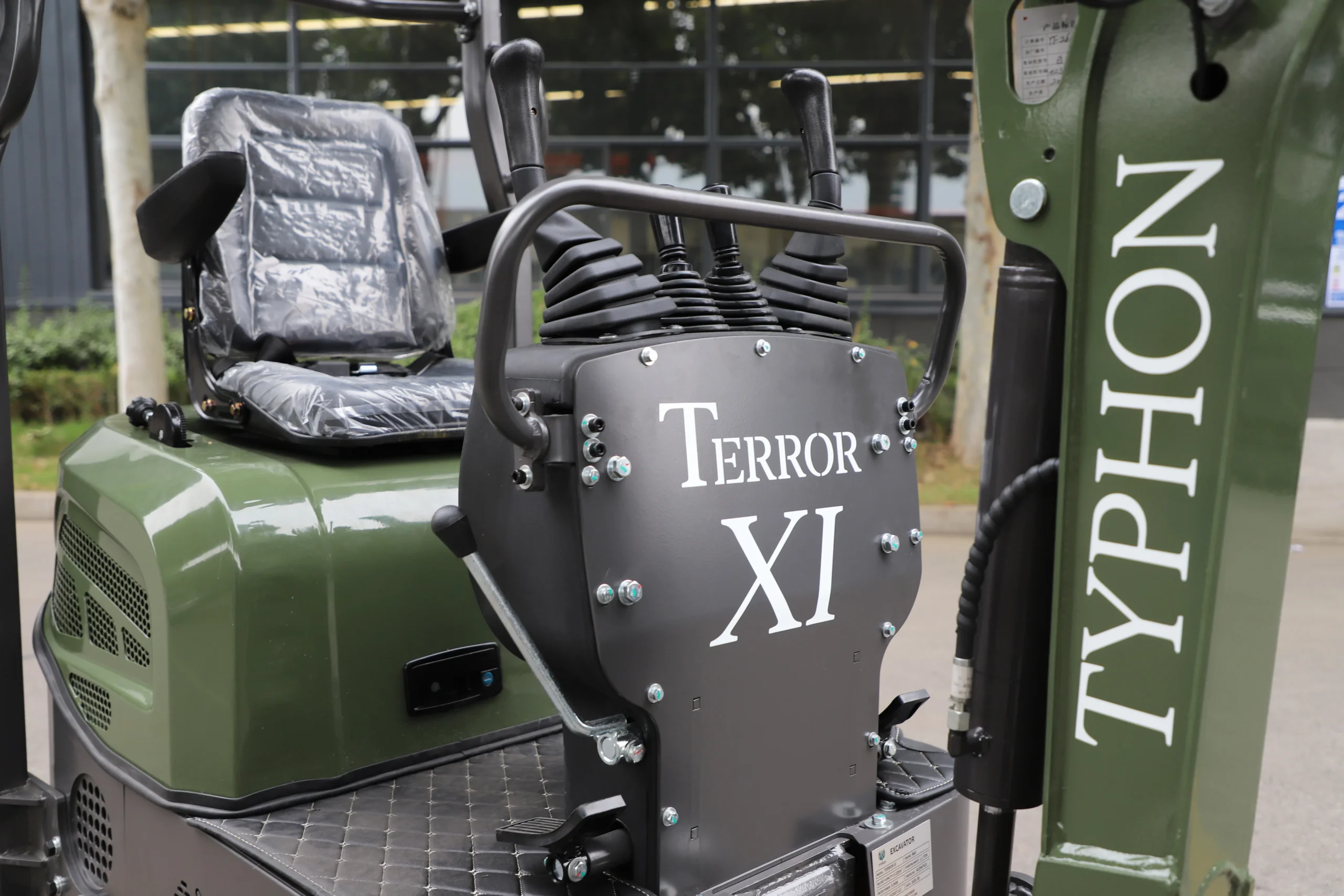

Multiple work levers positioned directly in front of the operator.

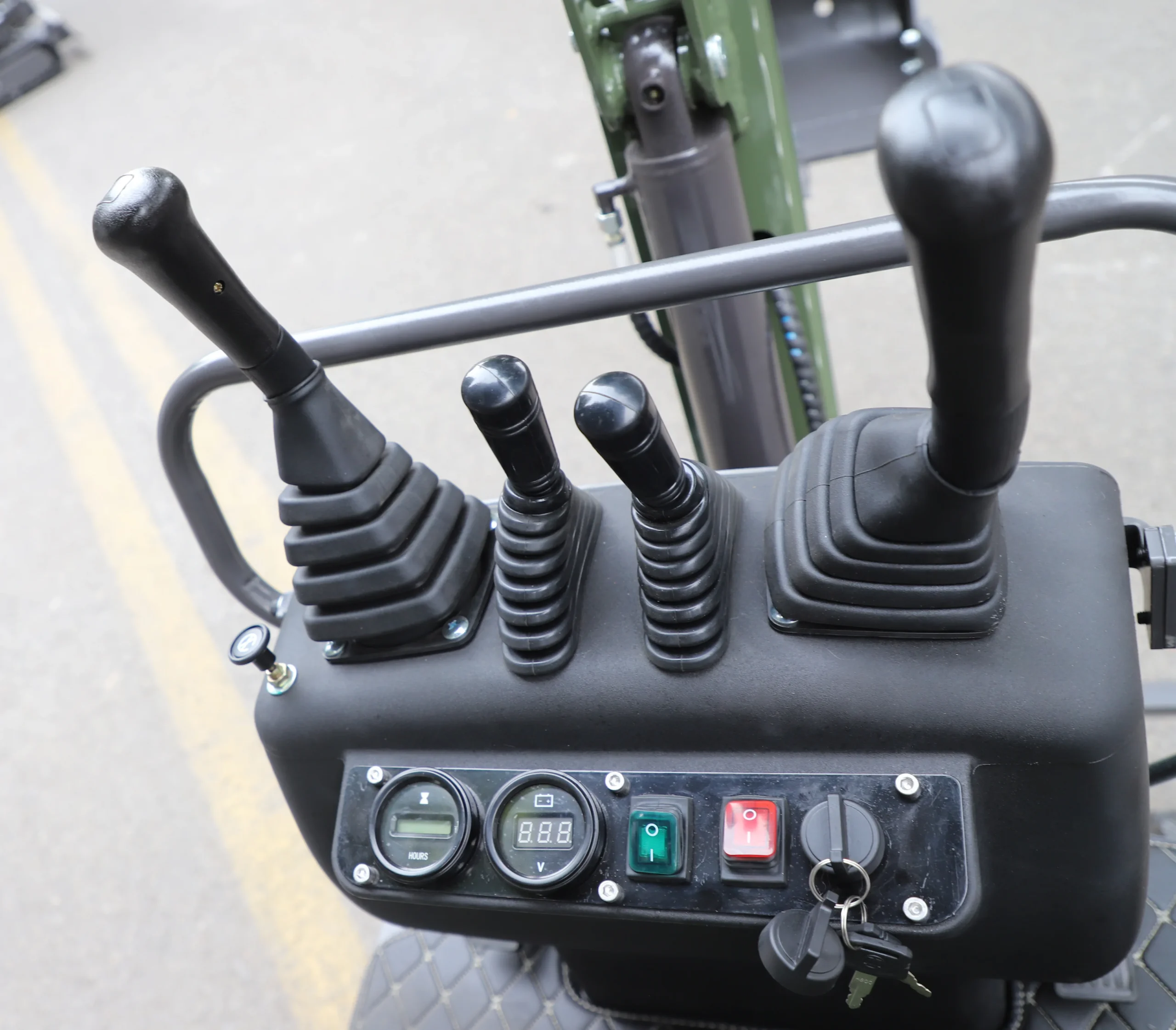

Detailed look at the control levers and electrical instrument area.

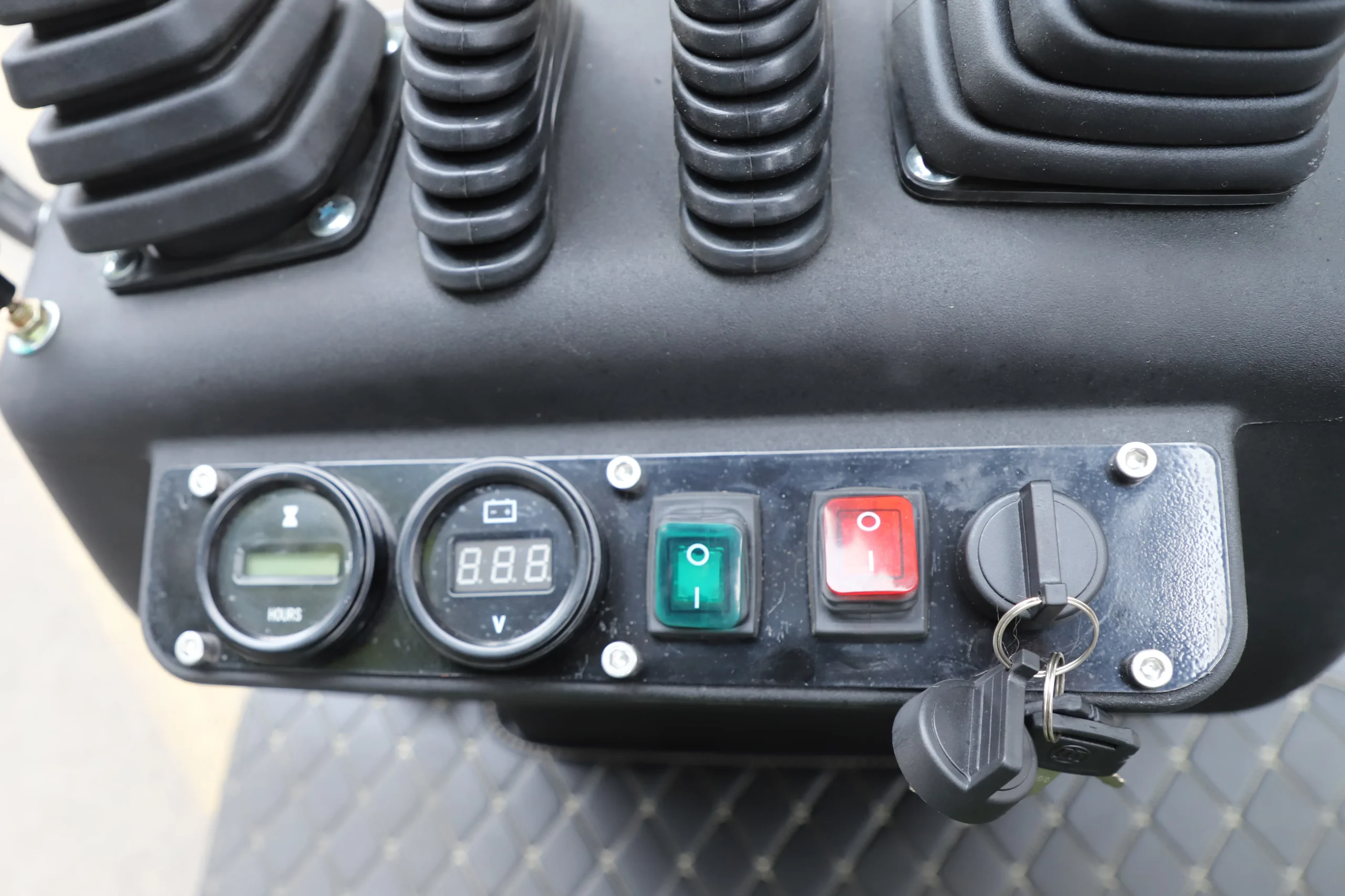

Hour meter, voltmeter, switches and keyed ignition.

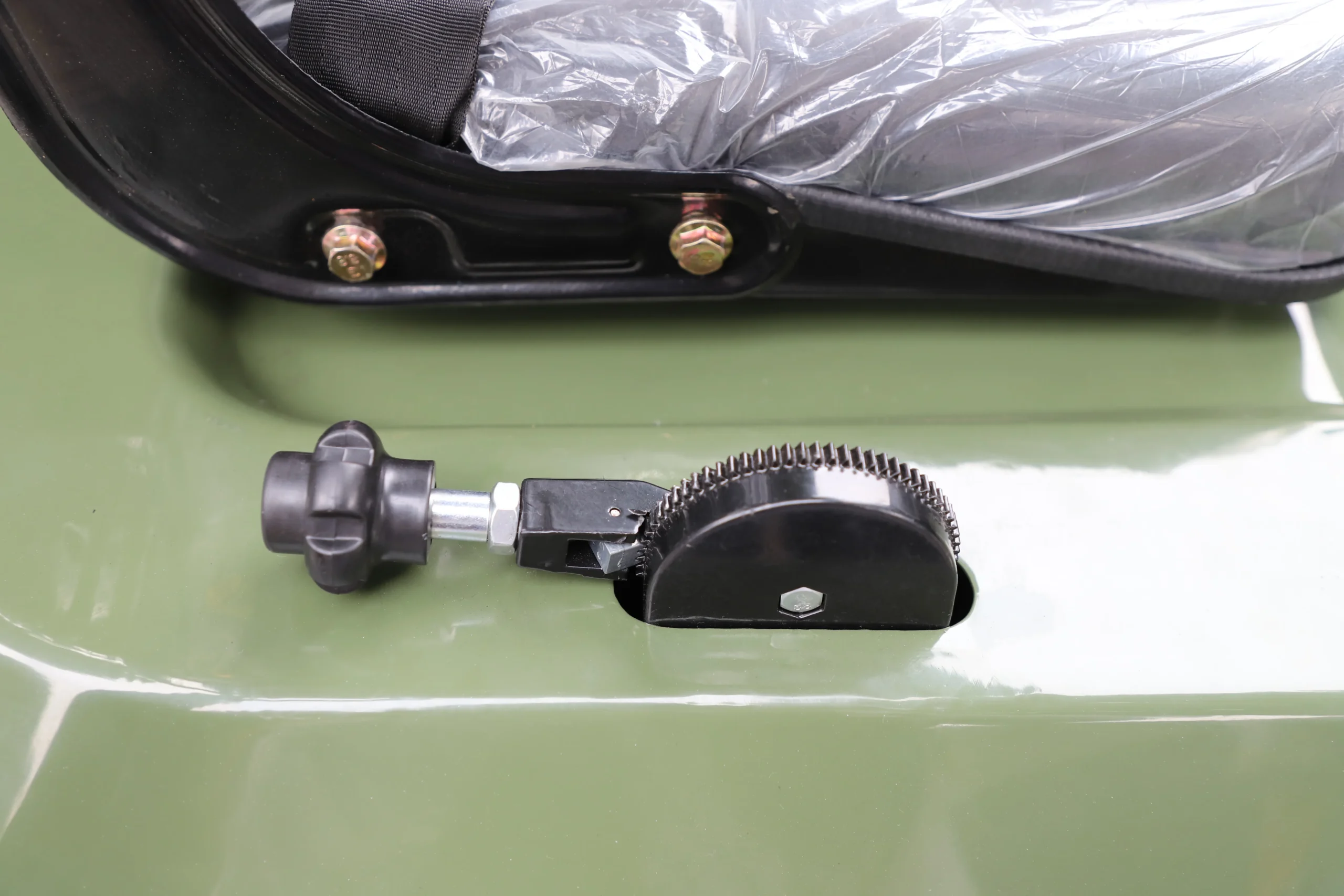

Mechanical seat adjustment hardware beside the seat.

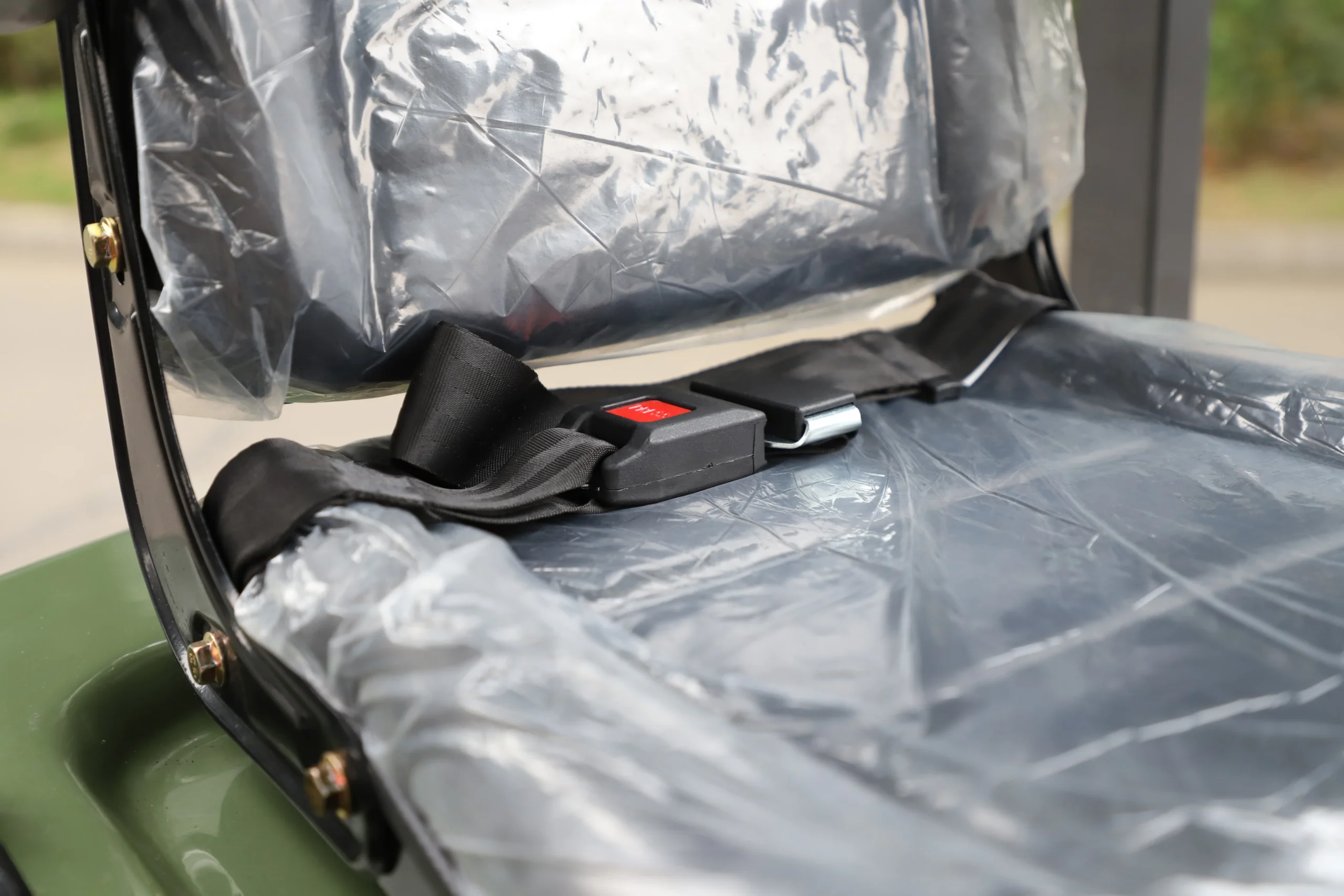

Integrated lap-belt hardware positioned at the operator seat.

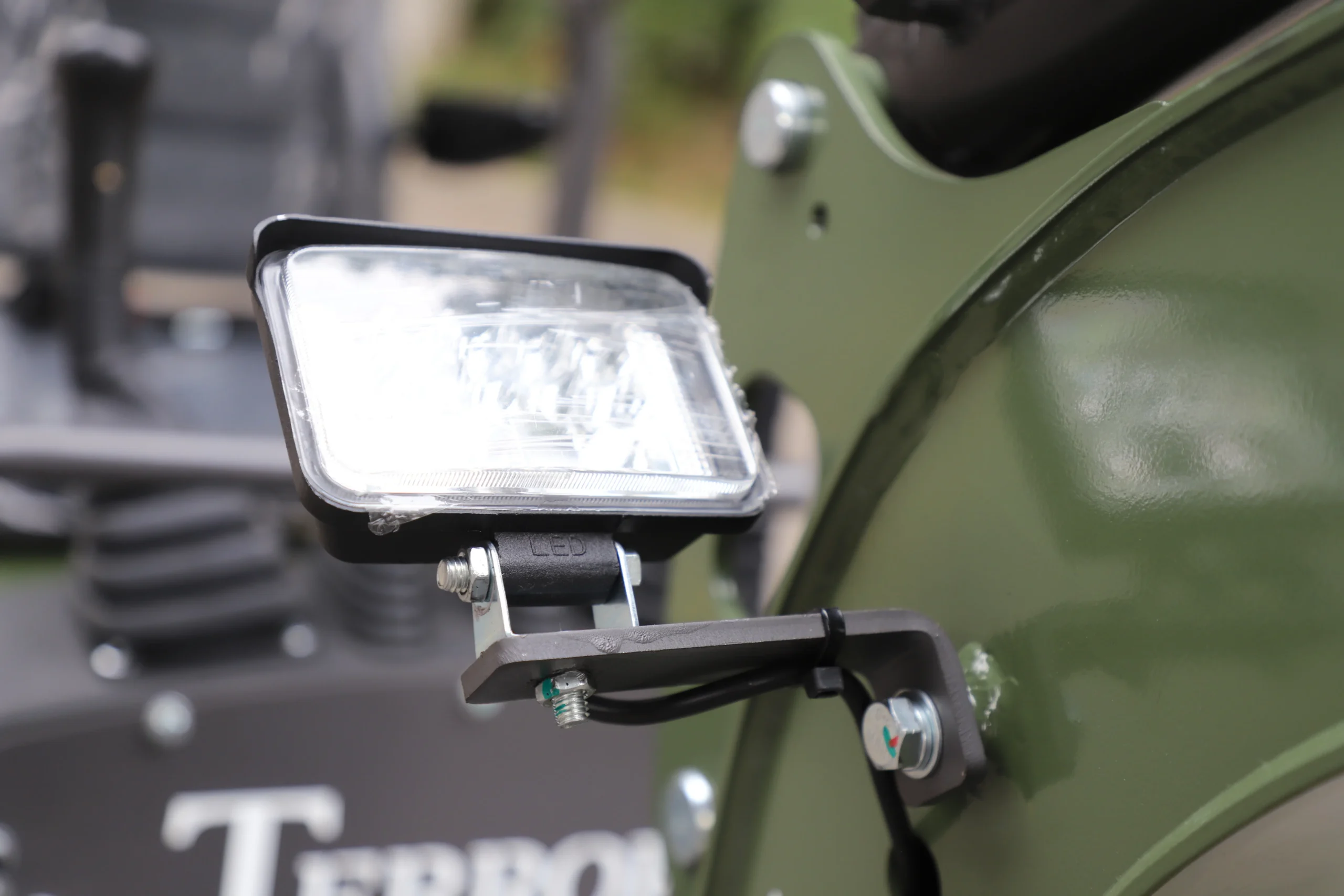

Mounted LED work lamp for additional visibility.

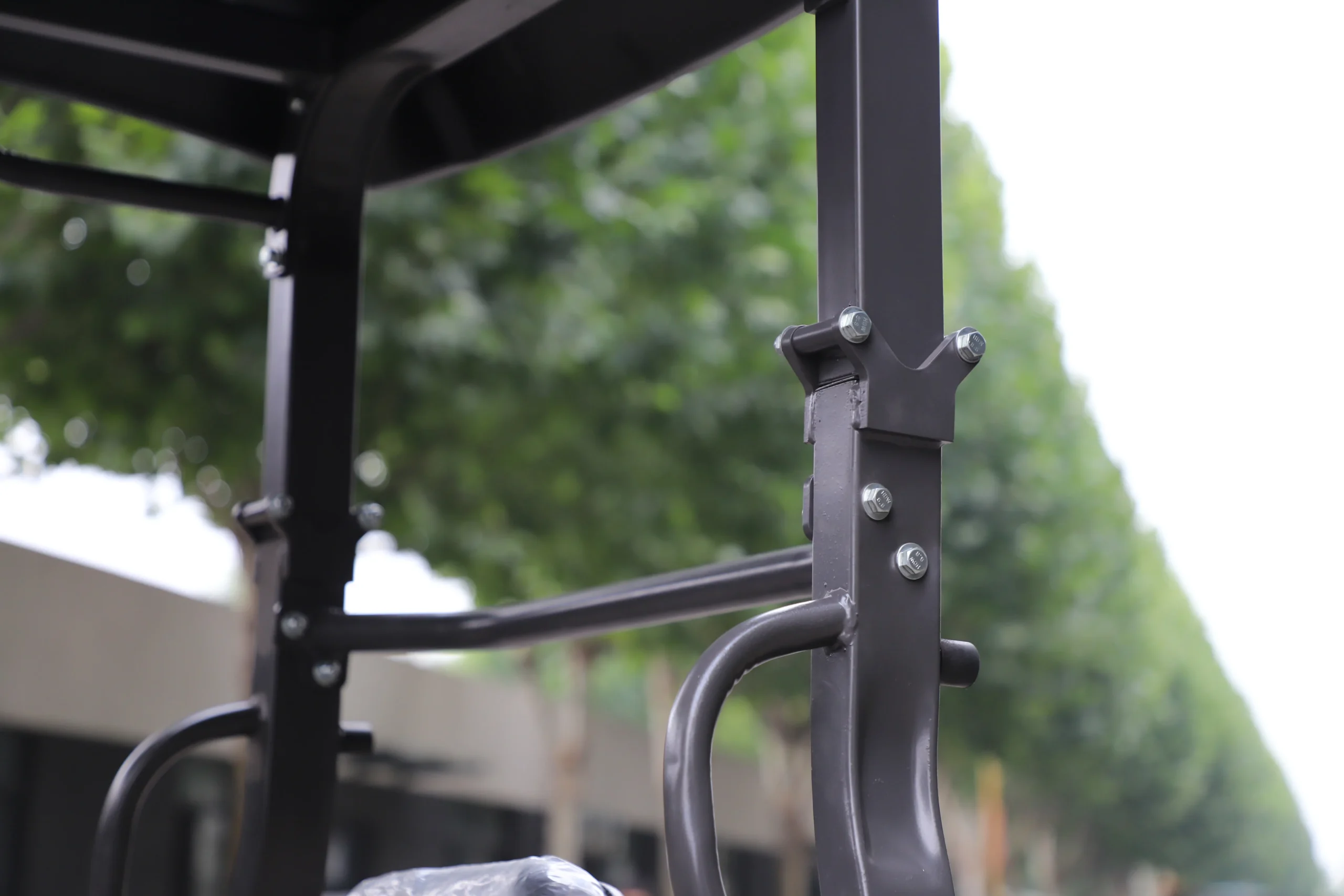

Bolted canopy upright with integrated operator assist handle.
Technical Data
TERROR XI STORM TECHNICAL SPECIFICATIONS.
U.S. measurements are shown first throughout this page for easier comparison with compact equipment used across the United States.

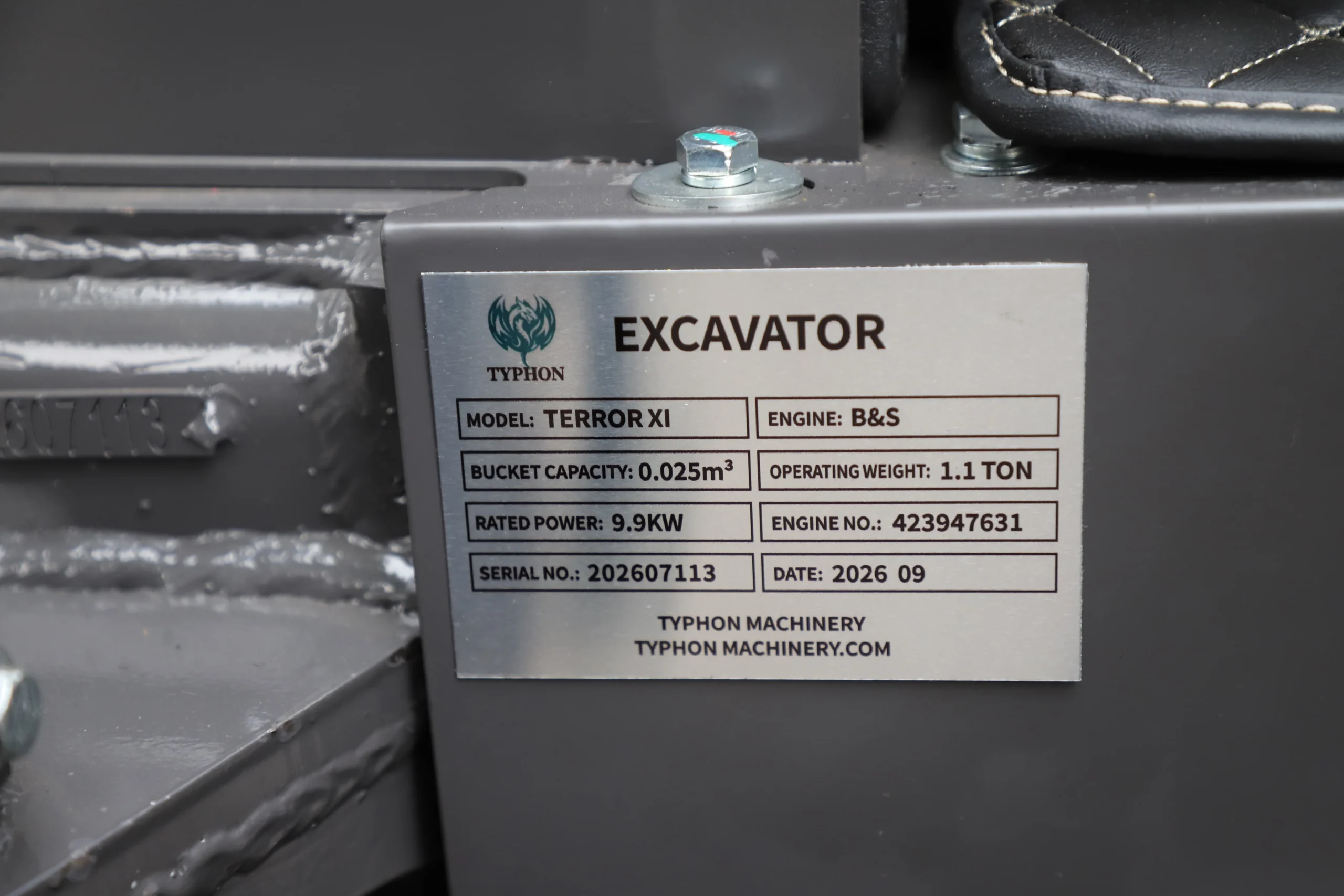

Physical machine identification showing TERROR XI model information, B&S engine designation, operating-weight data and bucket-capacity information.
Work Applications
ONE COMPACT EXCAVATOR. MULTIPLE JOBSITES.
Configure the TERROR XI around compact excavation work where access, maneuverability and attachment versatility matter.
Drainage trenches, small excavation, yard improvement and utility preparation.
Digging, grading, planting preparation, soil movement and cleanup work.
Drainage, fencing preparation, planting work and property maintenance.
Tight-access excavation, backfilling and small-site preparation.
Narrow excavation for pipes, drainage and property utilities.
Digging, grabbing, clearing, grading and ditch maintenance.
PUT THE TERROR XI TO WORK.
Expand the TERROR XI STORM with digging buckets, drilling tools, hydraulic attachments and ready-made attachment packages.
